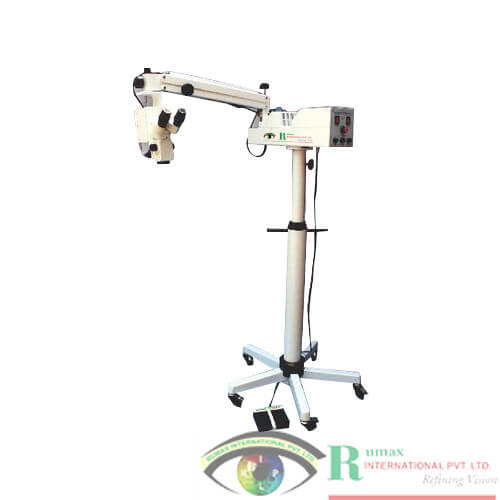

Surgical Microscope

KeywordDescription
Automation Grade Automatic
Color White
Is It Portable Portable
Brand Rumax
Working Distance 175mm or 200mm
Net Weight 65 kgs (Apptox )
Floor Stand Mobil Flooe Stand (optional Table )
Horizontal Length Of Arms 900mm
Inclination To Vertical 45 off vertical
Intensity 800,000 Lux
Interpupillary Distance Adjustable from 52 mm – 75 mm
Light Source Single Output 12v/100w Or 15v150w Cold REflector Halogen Lamp With Standby Lamp and Holder
Light Ttanmission Fiber optic cable
Mobility On Five Caster Wheels
Rotation Of Arm 355 wirh lock
Standard Accessories Dust cover,main cable,asepsis caps
Brightness continuously variable
Swivel Range Of Control Panel 360
Total Of View With 175Mm Objec 4,5,9,15,23
Total Of View With 200Mm Objec 3,5,8,13,20
Vertical Height Minimum 1220mm,Maximum 1625mm
Dimensions Of Base Circular-600mm Diameter
Diopter Adjustment FROM +6 TO -6
Eye Pieces 10 x Wide Field
Fild Of View With 175Mm Object 55,36,22,14,9
Fild Of View With 200Mm Object 63,42,25,16,10
Filter Build in Heat Absobing Filter And UV Green and Blue Filters With Switchable Facuty
Fine Focusing 50mm adjustable by manually adjustable (optional motorised )

Product Description

Our Manual Surgical Operating Microscope is now fitted with an optical head assembly. 0Manual focusing and positioning with the help of 320 rotatable counterbalanced gas spring-loaded arm. It also helps easy variable angle viewing. Coaxial illumination did through the fiber-optic light guide (cable) from a TWIN BULB, 15V/ 120W Halogen Lamp light source. Intensity is continuously variable from minimum to maximum and vice versa. Provision is available for Photography and CCTV camera (both for monitoring and/ or recording images), assistant’s microscope and monocular observation tube. Stable floor stands on four/ five castor- wheels for easy mobility. Table mount is also available instead of the floor stand.

Material : Metal

Power Supply : AC 220-240 Volts or 110v on request

Warranty : 1 Year

Net Weight : 65 kgs (Apptox )
